10. Monitoring Usage
Monitoring Your Resource Footprint
Certain parts of the GSB research computing infrastructure provide environments that are managed by a scheduler (like Yen-Slurm or Sherlock). In these cases it is not necessary for individuals to monitor resource usage themselves.
However, when working on systems like the interactive yens where resources like CPU, RAM, and disk space are shared among many researchers, it is important that all users be mindful of how their work impacts the larger community.
When using interactive yens, use the htop and userload commands to monitor CPU and RAM usage. Use the gsbquota command to monitor disk quota.
CPU & RAM
Per our Community Guidelines, CPU usage should always be limited to 48 CPU cores/threads per user at any one time on yen[2-5] and up to 12 CPU cores on yen1. Some software (R and RStudio, for example) default to claiming all available cores unless told to do otherwise. These defaults should always be overwritten when running R code on the yens. Similarly, when working with multiprocessing code in languages like Python, care must be taken to ensure your code does not grab everything it sees. Please refer to our parallel processing in R and Python for information about how to limit resource consumption when using common packages.
One easy method of getting a quick snapshot of your CPU and memory usage is via the htop command line tool. Running htop shows usage graphs and a process list that is sortable by user, top CPU, top RAM, and other metrics. Please use this tool liberally to monitor your resource usage, especially if you are running multiprocessing code on shared systems for the first time.

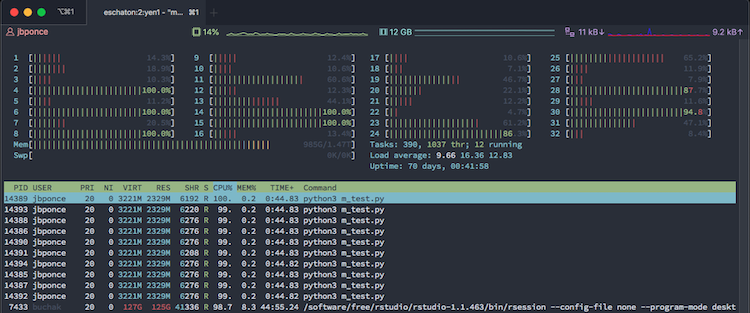

The htop console looks like this:
Note that in certain cases greedy jobs may be terminated automatically to preserve the integrity of the system.
The userload command will list the total amount of resources (CPU & RAM) all your tasks are consuming on that particular Yen node.
userload
If the output is empty, you are not utilizing any CPU or RAM on this Yen node.
Disk
Unlike personal home directories which have a 50 GB quota, faculty project directories on yens/ZFS are much bigger (1 T default). Disk storage is a finite resource, however, so to allow us to continue to provide large project spaces please always be aware of your disk footprint. This includes compressing files when you are able, and removing intermediate and/or temp files whenever possible.
Example
We are going to continue using the same R example and experiment running it on multiple cores and monitoring our resource consumption.

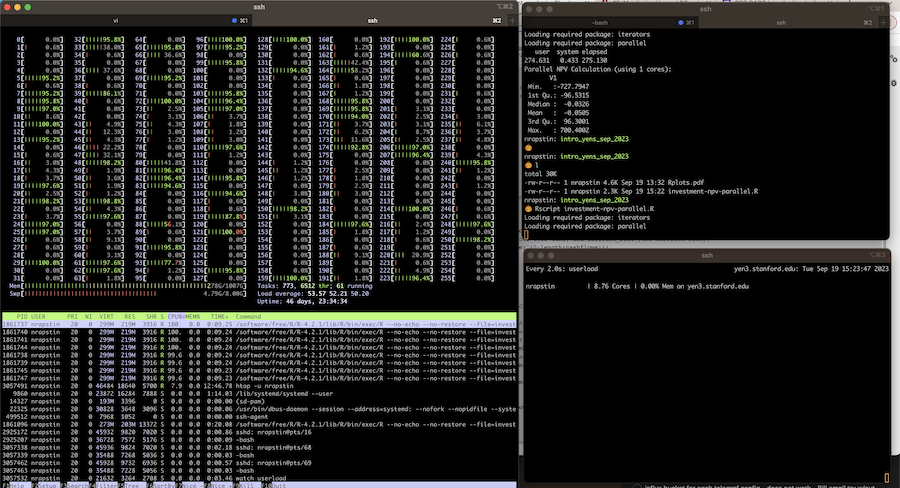

To monitor the resource usage while running a program, we will need three terminal windows that are all connected to the same yen server.
Check what yen you are connected to in the first terminal:
hostname
Then ssh to the same yen in the second and third terminal windows. So if I am on yen3, I would open two new terminals and ssh to the yen3 in both so I can monitor my resources when I start running the R program on yen3.
ssh yen3.stanford.edu
cd intro_to_yens_2024/examples
Once you have three terminal windows connected to the same yen, run the investment-npv-serial.R program after loading the R module in one of the terminals:
ml R
Rscript investment-npv-serial.R
Once the program is running, monitor your usage with userload command in the second window:
userload
You can refresh a particular command with watch. So, you can run watch userload and the output will refresh every 2 seconds (by default).
Run htop -u $USER in the third window, where $USER is your SUNet ID:
htop -u $USER
While the program is running you should see about 1 CPU core is being utilized in userload output and one R process is running in htop output because we specified 1 core in our R program.
userload
nrapstin | 0.99 Cores | 0.00% Mem on yen3.stanford.edu
Let’s run the same program with more cores. See code here.
Then rerun:
Rscript investment-npv-parallel.R
You should see:
Loading required package: iterators
Loading required package: parallel
user system elapsed
297.135 1.781 123.176
Parallel NPV Calculation (using 8 cores):
V1
Min. :-709.5883
1st Qu.: -96.3171
Median : 0.2777
Mean : 0.1964
3rd Qu.: 96.8101
Max. : 754.5522
While the program is running, you should see 8 R processes running in the htop output because we specified 8 cores in our R program and about 8 CPU cores being utilized in userload output. The program will run faster since we are using 8 cores instead of 1 but does not get you 8X speedup because of parallelization overhead.
Passing the Number of Cores as a Command-Line Argument
The last modification we’ll make is to allow our R script to take the number of cores as a command-line argument. This is useful because it gives you the flexibility to specify the number of CPU cores you want to use for parallel processing each time you run the script, without needing to edit the script itself. This can be especially helpful when running the same script on different machines or with different computational resources.
See the modified script called investment-npv-parallel-args.R.
To run the script, you can use the following command:
Rscript investment-npv-parallel-args.R 8
In this example, 8 is the number of cores you are requesting. The script will use this value to determine how many cores should be allocated for parallel processing. You can adjust the number of cores based on the resources available and remember to adhere to community guidelines.
Monitor your CPU usage while the program is running in the other terminal window with htop and userload.
